Packaged Wastewater Treatment Plant

Packaged Wastewater Treatment Plant

The package wastewater treatment plant produced by BETTER EPT can effectively remove BOD5, COD and NH3-N and can be built underground so it will not take up much space, or require constructing new buildings above the ground. Since it’s built underground, it has no use for heating and you can grow beautiful flowers or grass on the ground surface to beautify the surrounding environment. The package sewage treatment plant is widely used for residential sewage treatment in hotels, restaurants or malls.

Request a Quote

Parameter

Model WSZ-0.5 WSZ-1 WSZ-2 WSZ-5 WSZ-10 WSZ-20 WSZ-30
Capacity (m3/day) 12 24 48 120 240 480 720
Oxygen supply system Air flow (m3/min) 0.15 0.31 0.59 1.02 2.5 4.11 6.7
Wind load (m,mh2o) 1250 1500 2000 2200 2500 2500 2500
power (kW) 0.55 0.75 0.75 1.5 3 5.5 7.5
Sewage pump Flow (m3/h) 0.5 1 2 5 10 20 30
Head (m) 10 10 10 10 15 15 9
power (kW) 0.75 0.75 0.75 0.75 1.5 2.2 2.2
Number of equipment 1 1 1 1 1 2 3

P.S: The parameters can be customized.

Characteristics

  • Space-Efficient Design: The underground industrial wastewater treatment equipment can be installed below ground, requiring no floor space and eliminating the need for plant construction, heating, or insulation. Its surface area can be landscaped.
  • Durable Structure: Made from steel and coated with advanced anti-corrosion materials, the wastewater treatment equipment offers up to 12 years of corrosion resistance.
  • Efficient Oxidation Pond: Utilizing a plug flow biological contact oxidation pond, the industrial wastewater treatment equipment is more effective and compact than traditional activated sludge systems. It handles variable water conditions well, discharges water of stable quality, and prevents sludge expansion. The use of new elastomeric 3D materials in the oxidation pond improves oxygen solubility and increases pollutant removal rates.
  • Reduced Sludge Production: With low-volume bio-treatment technology in the aerobic phase, the wastewater treatment equipment generates minimal sludge, requiring removal only about once every 90 days.
  • Low Noise Operation: Equipped with a conventional silencer and new acoustic materials in its walls, the wastewater treatment equipment operates at a noise level below 50 decibels, minimizing impact on the surrounding environment.
  • Enhanced Deodorization: Beyond conventional air exhaust, the wastewater treatment equipment includes a soil-based deodorization system that uses microorganisms to neutralize odors.
  • Automated Control System: Featuring an automatic electric control system and damage alarm, the wastewater treatment equipment is highly reliable, requiring only routine maintenance and no special supervision.
  • Customizable for Special Requirements: We can modify the treatment capacity and specifications of the wastewater treatment equipment to meet unique customer requirements while ensuring optimal treatment performance.

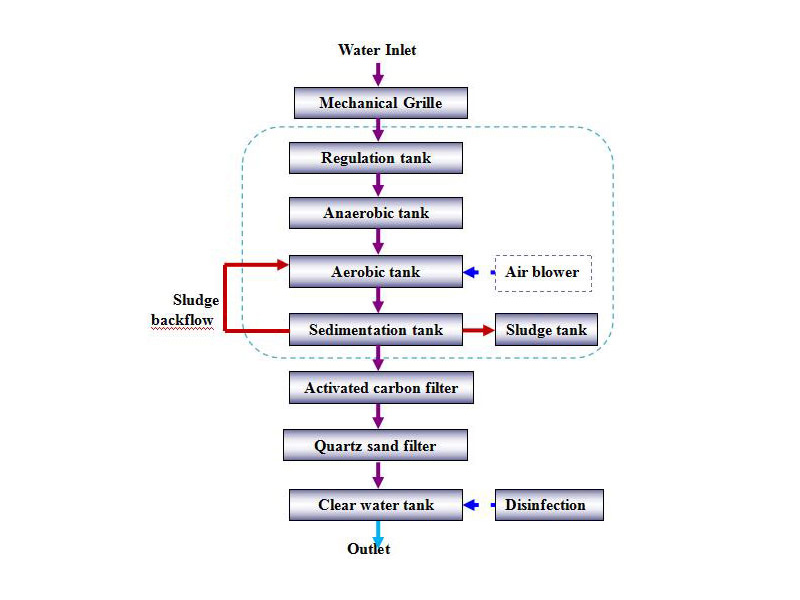

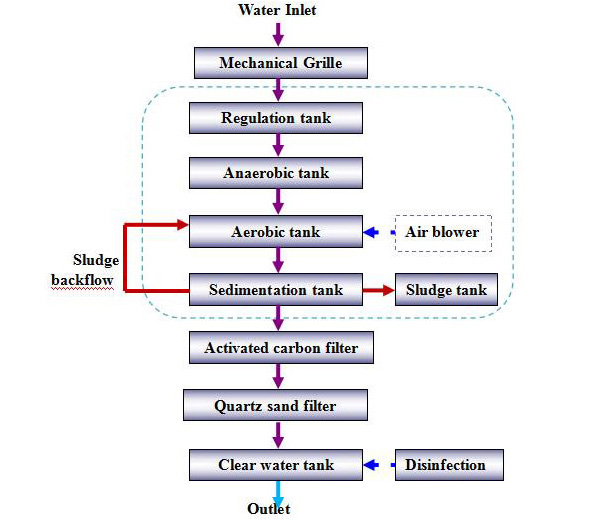

Working Principle

The collected sewage will first be treated by the mechanical grille, which can remove large solids to avoid blocking the pump, allowing for later stable treatment; Then water quantity and quality will be balanced in the regulating tank and be pumped into later package sewage treatment plant, AO sewage treatment plant, through the adsorption and degradation of biological bacteria for residues in the wastewater, and then flow into the sedimentation tank, the excess sludge will sediment in the sedimentation tank, then for later filtration and disinfection.

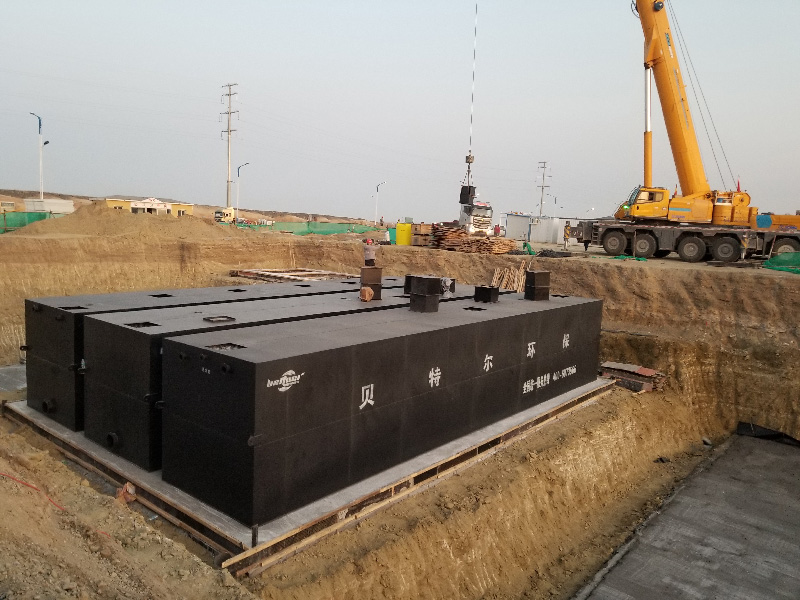

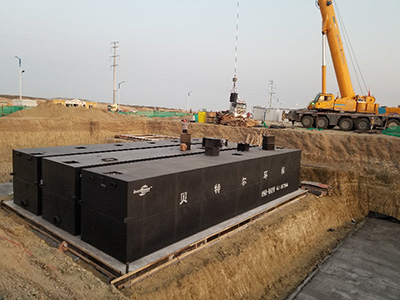

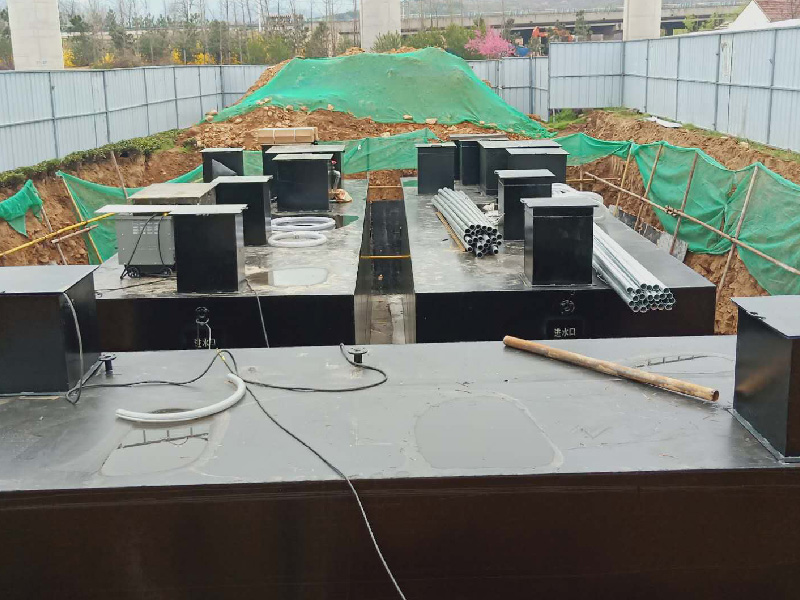

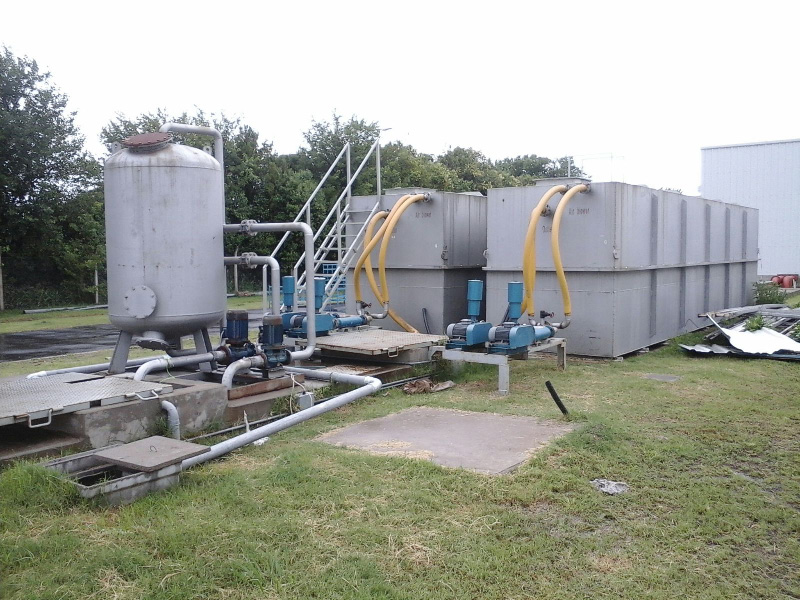

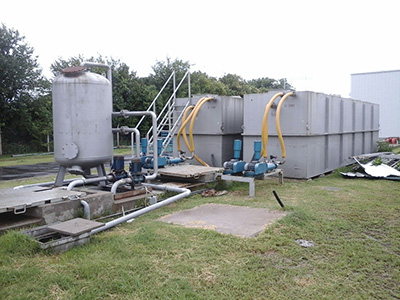

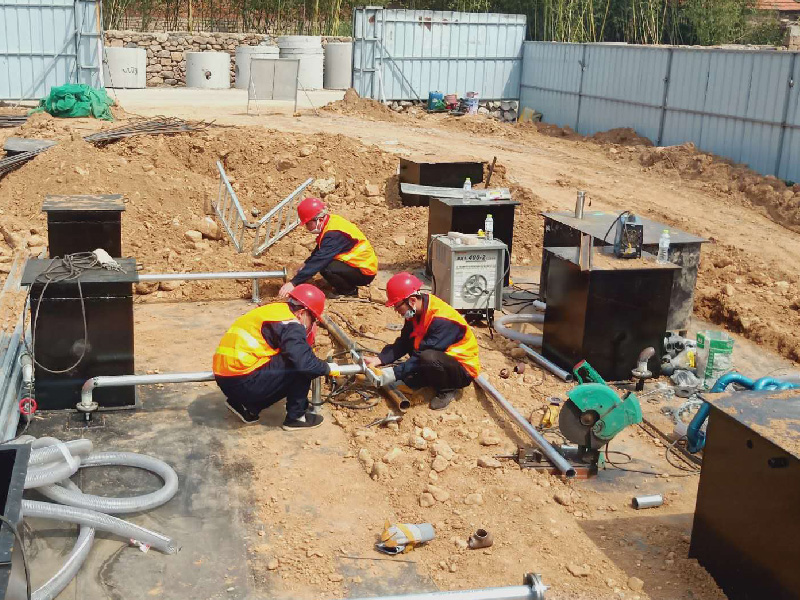

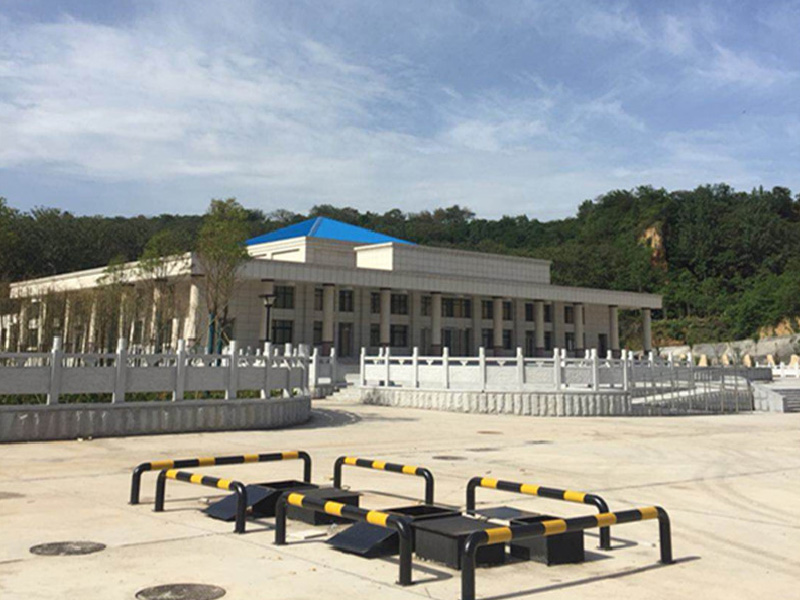

Packaged Wastewater Treatment Plant At Customer's Site
