Ceramic Disc Filter

Ceramic Disc Filter, Sewage Treatment Equipment

The ceramic disc filter produced by BETTER EPT features a micro-porous ceramic filter plate, and can separate the solid and the liquid under vacuum suction and capillary action. The ceramic disc filter can be widely used in metallurgy, mineral processing, chemical, environmental, paper, petroleum and many other industries.

Request a Quote

Parameter

Model Filter tray (ring) Number of filter plate (piece) Volume of tank (m3) Installed power (kw) Operation power (kw) Length X width X height (mm)
BTC-1 1 12 0.4 7.6 6.6 2200*1950*1630
BTC-4 2 24 0.79 9 7.32 2450*2250*1830
BTC-6 3 36 0.94 10.5 7.98 2700*2250*1830
BTC-8 4 48 1.28 11.5 8.14 3040*2250*1830
BTC-12 6 72 1.79 13 7.96 3600*2250*1830
BTC-24 8 96 3.96 23 16.28 4450*2850*2250
BTC-30 10 120 4.6 25.15 17.95 5100*2850*2240
BTC-45 10 120 5.9 40 30.4 5700*3200*2500
BTC-60 14 168 8.1 43.81 30.37 6820*3200*2500

Details

Ceramic Disc Filter

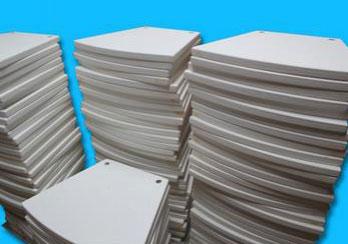

Ceramic Filter Plate
The ceramic filter plate is a new kind of filter media which is made of corundum, silicon carbide and other materials processed by special techniques.

Ceramic Disc Filter

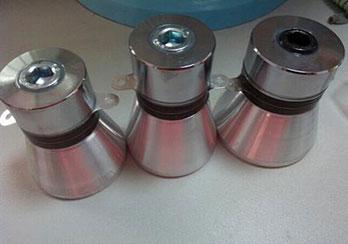

Ultrasonic Oscillator
The ultrasonic oscillator is made of piezoelectric ceramic material, which has good hear resistance with a large range of temperature and the calorific value is low.

Characteristics

  • The high vacuum from 0.09 to 0.098 MPa of the ceramic disc filter makes the filter cake dryer.
  • The solid substances in the filtrate are less than 50ppm, and the filtrate can be recycled to reduce the discharge of wastewater.
  • Compared with traditional ceramic filter, ceramic vacuum filters add the washing function of filter cake and are suitable for filtering materials that need to be washed.

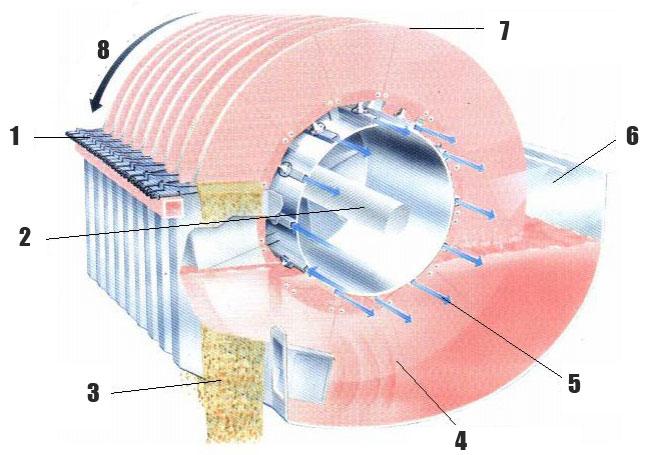

Structure

  • Scraper
  • Main Shaft
  • Sludge Cake
  • Slurry
  • Filtrate
  • Main Body
  • Filter Plate
  • Rotation Direction of Roller
