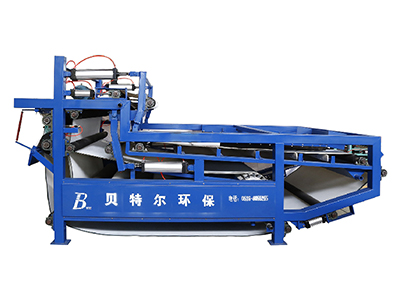

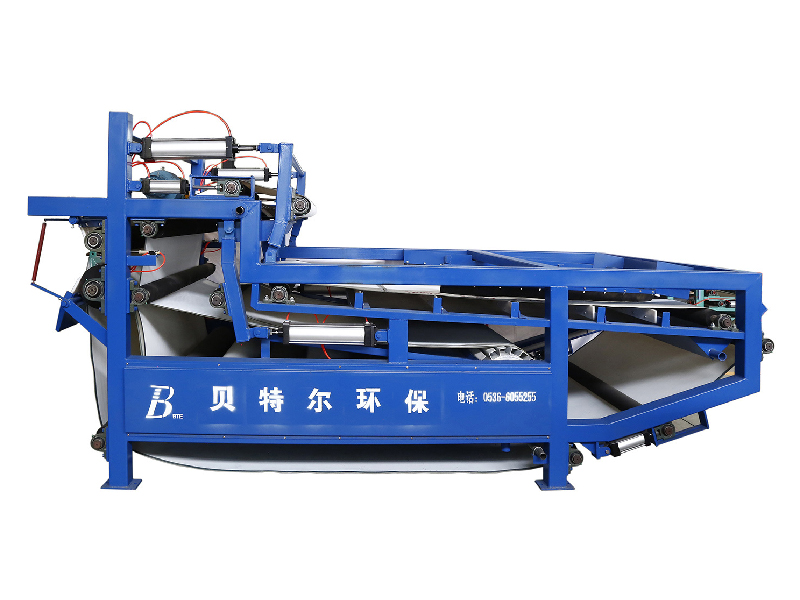

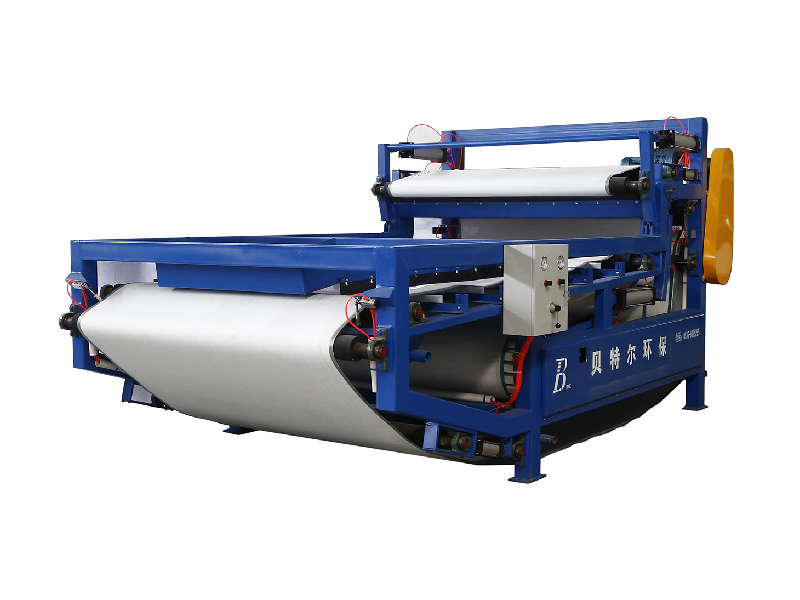

The belt filter press is a type of material dehydrating equipment, which can be used with air flotation equipment to dehydrate and press the suspended matter and sludge produced after air flotation process into filter cake to prevent pollution. The belt filter press can also be used to concentrate slurry and extract waste liquor.
Parameter
Item
Model
RBYL-500
RBYL-650
RBYL-1000
RBYL-1500
RBYL-2000
RBYL-2500
RBYL-3000
RBYL-4000
Main motor
Power (kw)
0.75
0.75
1.1
1.5
2.2
4
5.5
7.5
Air compressor
1.5
2.2
2.2
3
4
5.5
5.5
7.5
Belt width (mm)
500
650
1000
1500
2000
2500
3000
4000
Processing capacity(m3/h)
0.5-3.0
1.5-4.5
3-6.5
4-9.5
5-13
7-15
8-20
12-30
Size
Length(mm)
5260
5260
5260
5260
5260
6200
7200
7800
Width(mm)
1080
1230
1580
2170
2650
3125
3623
4690
Height(mm)
2360
2360
2360
2360
2360
2500
2930
3030
Weight(kg)
2000
2200
3300
5200
7400
11600
14000
25000
Input concentration
3-8%
Moisture content of effluent
30-45%
Details
Filter cloth

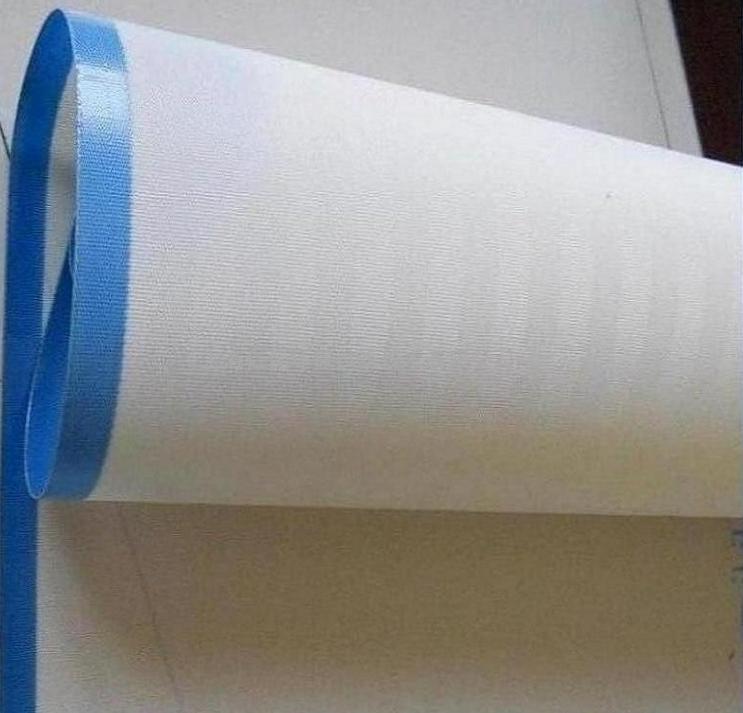

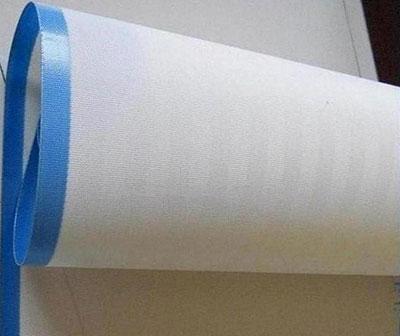

The filter cloth of the belt filter press is made of monofilaments and multifilaments with cross-section. It can intercept two to ten micron materials and the material is easy to peel off.

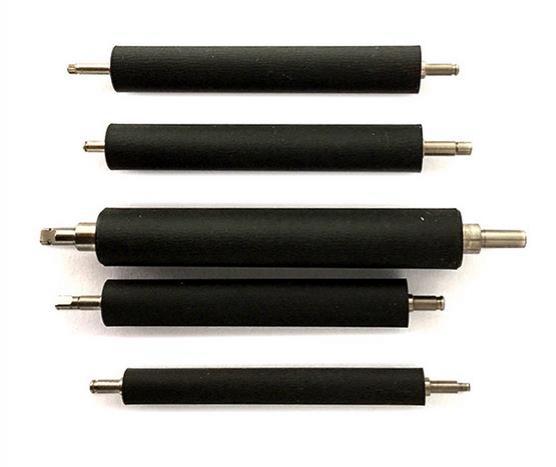

Roller

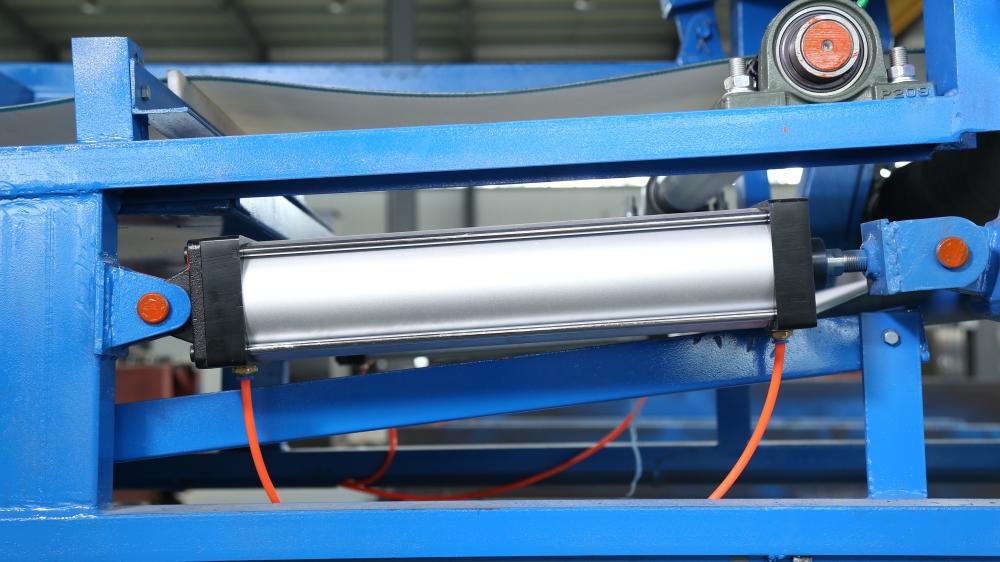

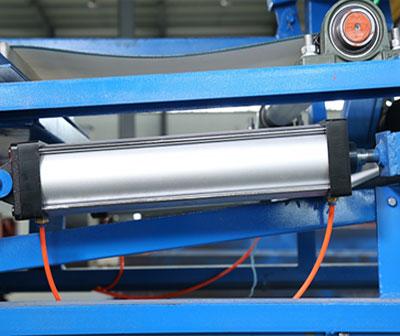

Air cylinder
Working principle

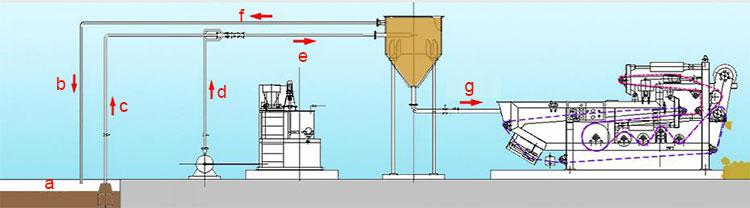

a: sludge tank
b: backflow
c: sludge
d: chemical/polymer
e: feeding inlet
f: backflow
g: feeding inlet
After mixing the concentrated sludge and certain concentration of flocculants, the small particles in the sludge will coagulate into larger flocculent aggregates. The flocculated sludge will be transported to the belt filter, where the free water will be separated under the action of gravity. The sludge in the dynamic state is then clamped between the upper and lower mesh belts. Under the action of extrusion force and shearing forces in the precompressed zone, meiobar and high-pressure region, the sludge is gradually pressed into filter cake and finally discharged.
